POSITIVE BATTERY CABLE INSTALLATION CONTINUED
1. Install positive battery cable (Figure 10, Item 6) on machine.
2. Install two positive battery cable grommets (Figure 10, Items 1 and 10) on frame rail (Figure 10, Item 5).
3. Position flange (Figure 10, Item 9) on grommet (Figure 10, Item 10).
4. Install two bolts (Figure 10, Items 7 and 12) and washers (Figure 10, Items 8 and 11).
5. Position flange (Figure 10, Item 2) on grommet (Figure 10, Item 1).
6. Install two bolts (Figure 10, Item 4) and washers (Figure 10, Item 3) on machine.

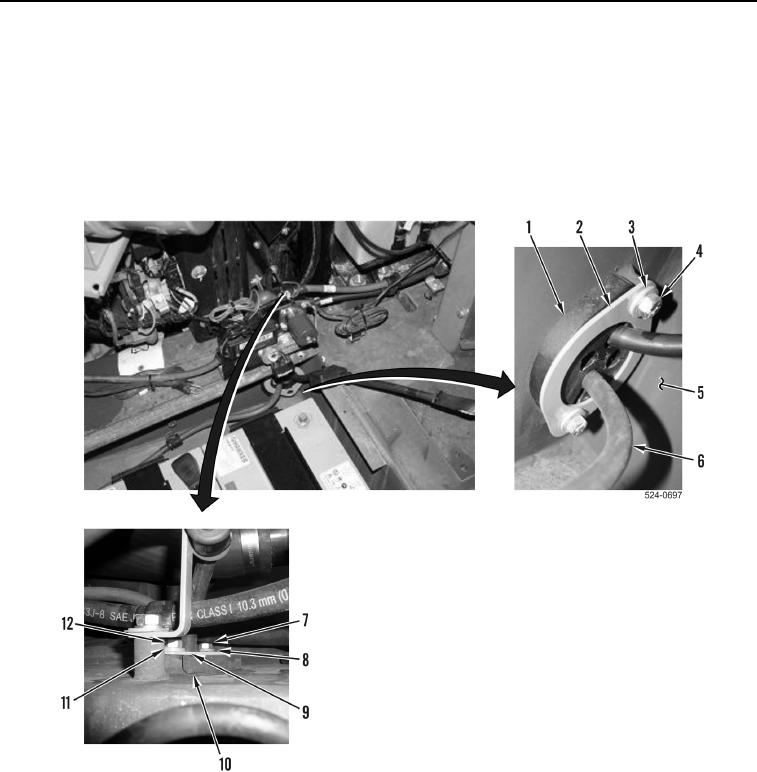

Figure 10. Positive Battery Cable Frame Grommets.
