Table 1. One or Both Headlights Fail To Operate in High Beam Continued.
0142
MALFUNCTION
TEST OR INSPECTION
CORRECTIVE ACTION
4. Remove two bolts
One or Both Headlights Fail
(Figure 2, Item 1) and left vent
To Operate in High Beam
(Figure 2, Item 2) from instrument
Continued
panel (Figure 2, Item 3).
5. Remove two bolts
(Figure 2, Item 6) and right vent
(Figure 2, Item 7) from instrument
panel (Figure 2, Item 3).
6. Remove six bolts (Figure 2, Item 4)
from instrument panel
(Figure 2, Item 3) and ROPS
(Figure 2, Item 5). Position
instrument panel to access
connector P-C18
(WP 0012, Figure 269).

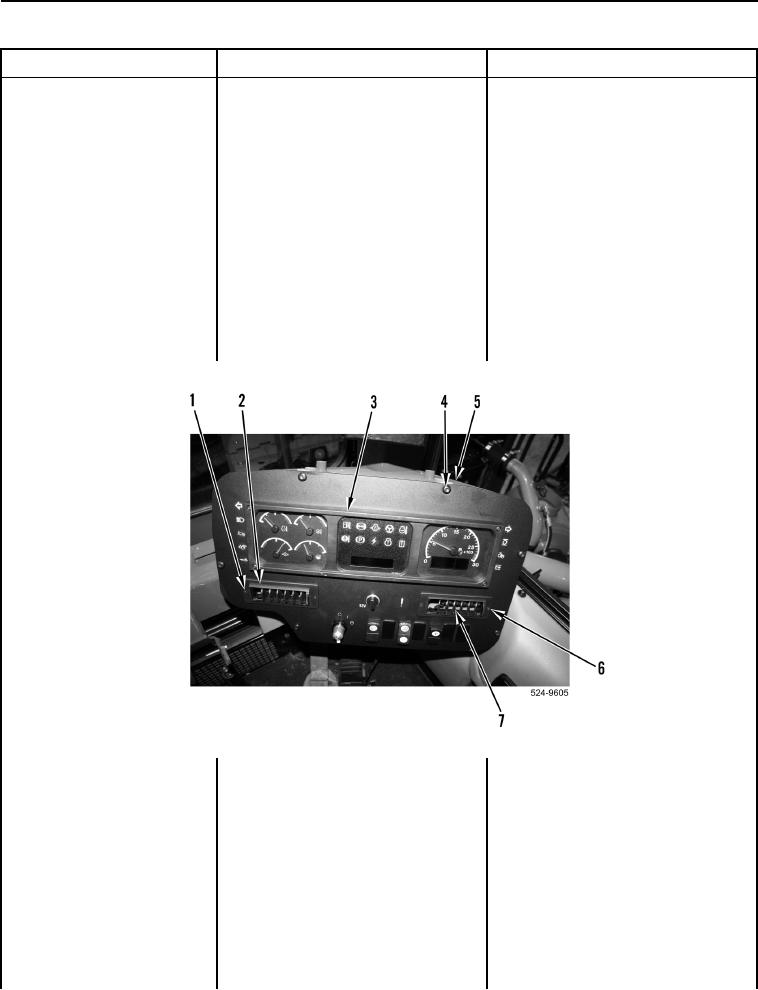

Figure 2. Instrument Panel and Retaining Hardware.
0142
7. Disconnect connector P-C4
(WP 0012, Figure 255) from
brights switch (WP 0012,
Figure 254).
8. Verify brights switch is in high-
beam position
(TM 5-3805-296-10).
9. Using digital multimeter
Resistance 5.0 Ohms or Less
(WP 0540), measure resistance
Proceed to Test Step 8.
between brights switch terminal 2
Resistance Greater Than 5.0 Ohms
and terminal 3
Replace brights switch (WP 0518).
(WP 0012, Figure 254).
Proceed to Test Step 18.
