TM 5-3805-296-23-5
0341
BOWL AIR HOSES REMOVAL CONTINUED
NOTE
Note location and orientation of hose clamps to aid in installation.
Note routing and location of air hoses to aid in installation.
19. Remove bolt (Figure 36, Item 1), washer (Figure 36, Item 2), and P-clamp (Figure 36, Item 8) from clamp
(Figure 36, Item 3).
20. Remove P-clamp (Figure 36, Item 8) from air hoses (Figure 36, Item 7).
21. Remove bolt (Figure 36, Item 4), washer (Figure 36, Item 5), and P-clamp (Figure 36, Item 6) from machine.
22. Remove P-clamp (Figure 36, Item 6) from air hoses (Figure 36, Item 7).

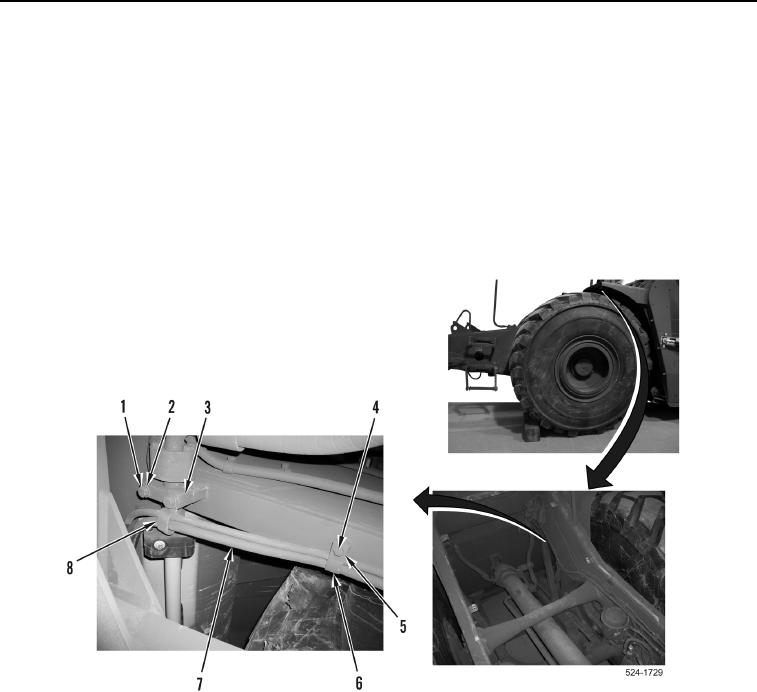

Figure 36. Forward Rear Air Hose Clamps.
0341
