INSTALLATION CONTINUED
WARNING
Use extreme caution when handling heavy parts. Provide adequate support and use
assistance during procedure. Ensure any lifting device used is in good condition and of
suitable load capacity. Keep clear of heavy parts supported only by lifting device. Failure
to follow this warning may result in injury or death to personnel.
NOTE
Right radiator core weighs approximately 50 lb (23 kg).
Install radiator cores as noted during removal.
3. With assistance, install right radiator core (Figure 21, Item 2) on cooling pack assembly (Figure 21, Item 1).

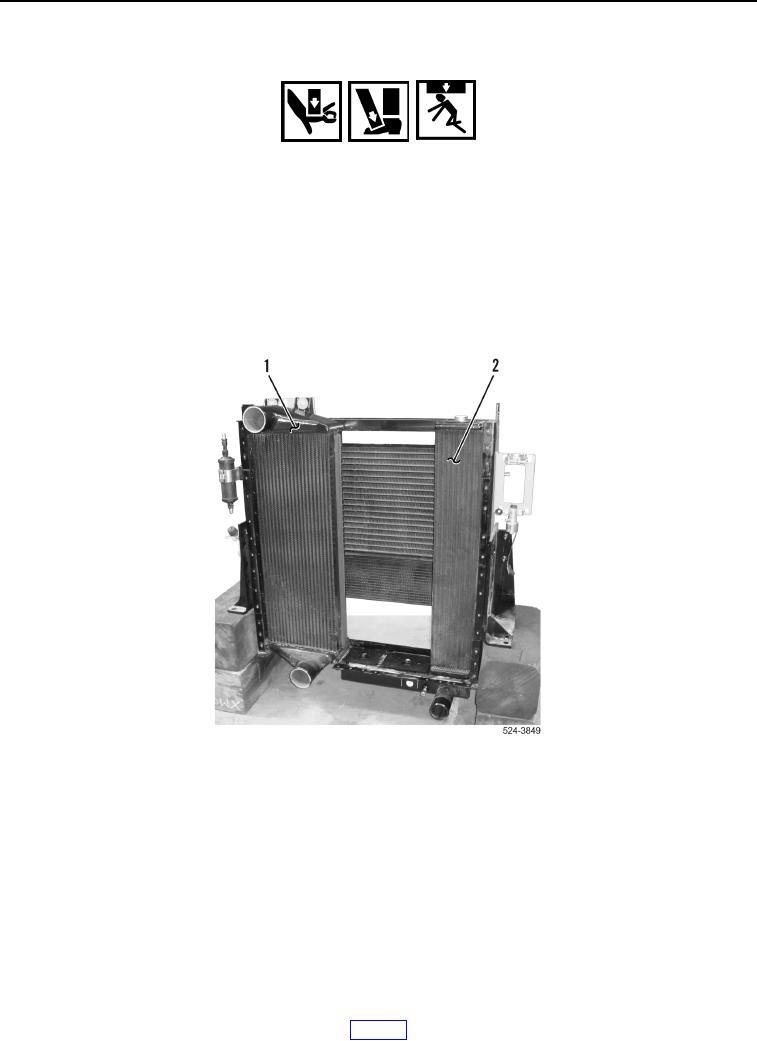

Figure 21. Right Radiator Core.
