Table 1. Blower Motor Does Not Operate in One or More Speeds Continued.
0134
MALFUNCTION
TEST OR INSPECTION
CORRECTIVE ACTION
4. Turn battery disconnect switch and
Blower Motor Does Not
ignition switch to ON position
Operate in One or More
(TM 5-3805-296-10).
Speeds Continued
5. Turn fan speed switch to position I,
II, III, and IIII (TM 5-3805-296-10).
6. Turn fan speed switch to
position O (TM 5-3805-296-10).
7. Turn ignition switch and battery
disconnect switch to OFF position
(TM 5-3805-296-10).
Circuit Breaker Not Tripped
8. Inspect blower circuit breaker in
Replace blower motor (WP 0455).
circuit breaker panel
Proceed to Test Step 38.
(TM 5-3805-296-10).
Circuit Breaker Tripped Replace
blower resistor (WP 0456).
Reset blower circuit breaker
(TM 5-3805-296-10).
Proceed to Test Step 38.
Test Step 23. Test for Shorted
Headliner Wiring Harness.
1. Remove four bolts
(Figure 9, Item 2) and plate
(Figure 9, Item 1) from headliner
(Figure 9, Item 3).

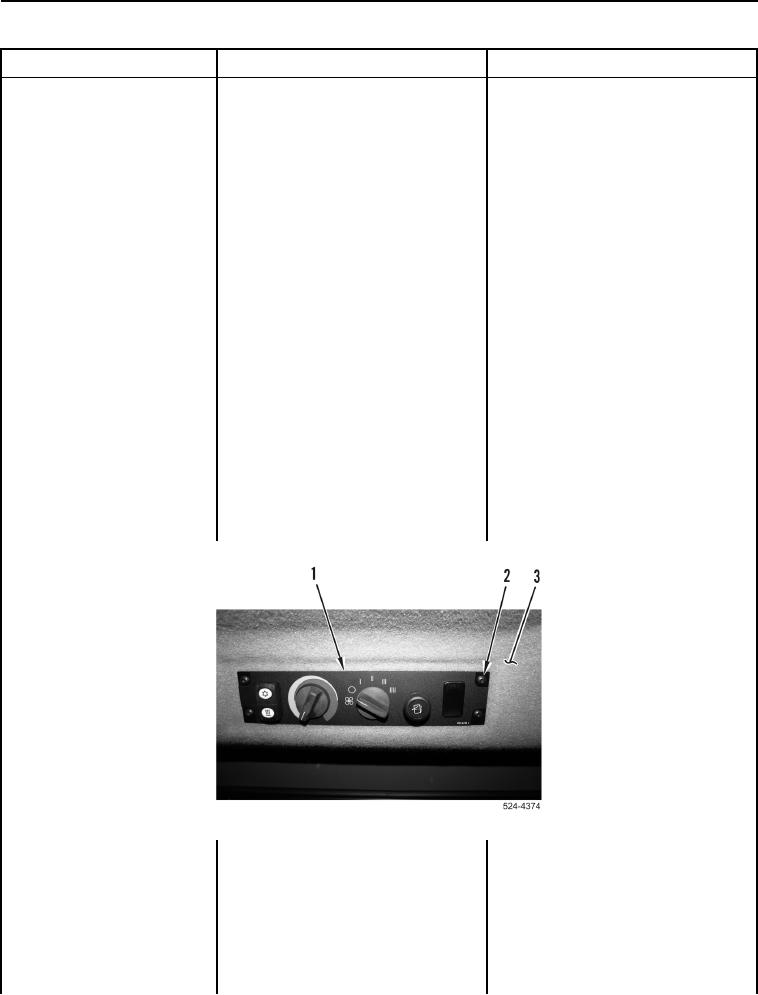

Figure 9. Plate and Retaining Hardware.
0134
2. Disconnect connector H-C15
(WP 0012, Figure 248) from heat
A/C switch (WP 0012, Figure 247).
3. Disconnect connector W-C2
(WP 0012, Figure 224) from
connector H-C7
(WP 0012, Figure 225).
