TM 5-3805-296-10
OPERATOR MAINTENANCE
-
FUSE AND CIRCUIT BREAKER MAINTENANCE
0018
Removal, Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
0
0
Fuse (as required)
Machine parked (WP 0005)
0
0
0
Estimated Time to Complete
0
0.2 Hr
0
REMOVAL
00018
N OT E
Fuse and circuit breaker panel is located behind the access door to the right of the
operator seat inside the cab.
1. Open fuse panel access door (Figure 1, Item 1) and remove fuse cover (Figure 1, Item 3) from fuse panel
(Figure 1, Item 2).

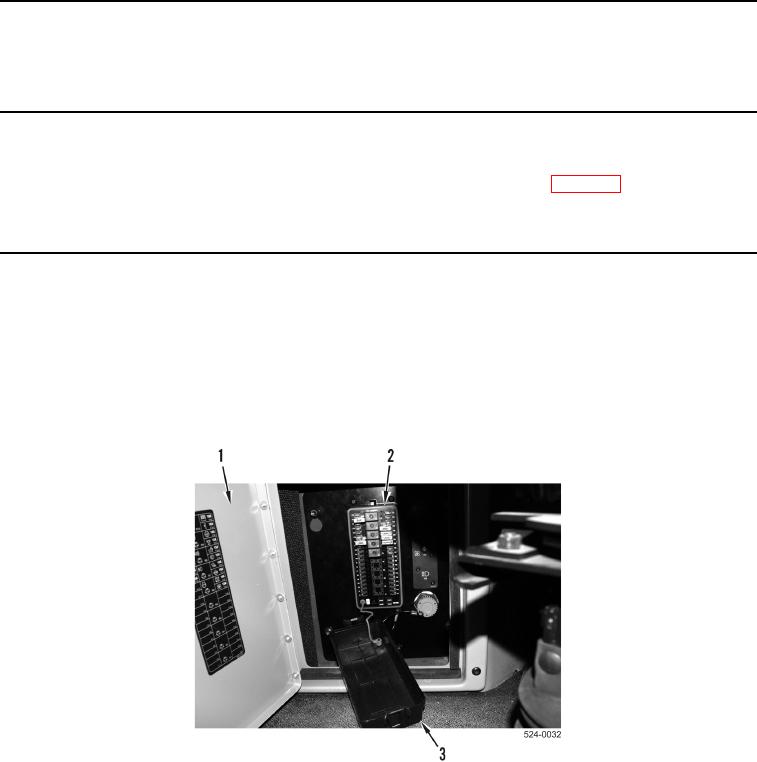

Figure 1. Fuse Panel Access.
