TM 5-3805-296-23-6
0421
INSTALLATION CONTINUED
23. Remove four bolts (Figure 28, Item 1), washers (Figure 28, Item 2), two flange halves (Figure 28, Item 4), and
cover (Figure 28, Item 6) from ejector cylinder (Figure 28, Item 3).
24. Remove O-ring (Figure 28, Item 5) from cover (Figure 28, Item 6). Discard O-ring.

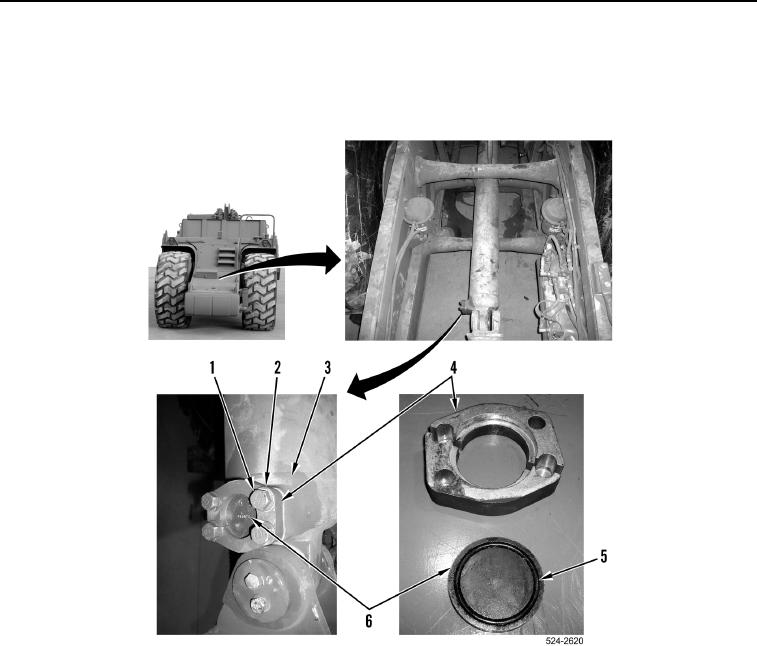

Figure 28. Ejector Reverse Tube Cover.
0421
