INSTALLATION
000404
NOTE
Install P-clamps as noted during removal.
Install tiedowns as noted during removal.
1. Install 16 tiedown straps (Figure 15, Item 2) on lubrication hoses (Figure 15, Item 4).
2. Install large P-clamp (Figure 15, Item 3) on lubrication hoses (Figure 15, Item 4).
3. Install two medium P-clamps (Figure 15, Item 1) on lubrication hoses (Figure 15, Item 4).
4. Install two small P-clamps (Figure 15, Item 5) on lubrication hoses (Figure 15, Item 4).
NOTE
Install lubrication hoses as noted during removal.
Install P-clamps as noted during removal.
5. Install lubrication hoses (Figure 16, Item 6), P-clamp (Figure 16, Item 2), spacer (Figure 16, Item 4), P-clamp
(Figure 16, Item 5), washer (Figure 16, Item 3), and bolt (Figure 16, Item 1) on machine.

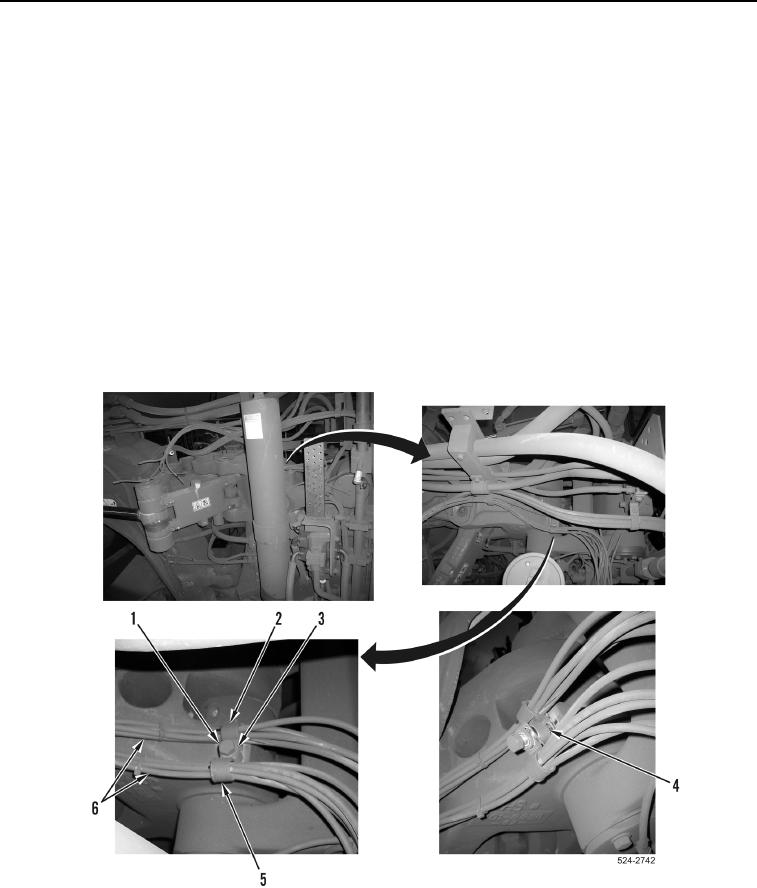

Figure 16. Center Front P-clamps.
