TM 9-6230-210-13&P

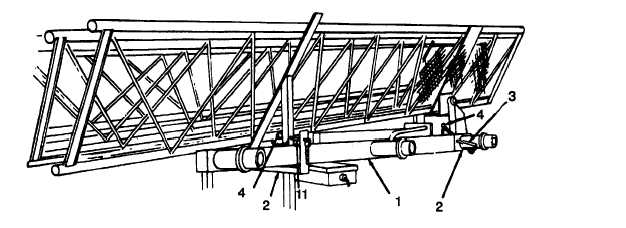

(14) Remove light bar (9) and place in storage brackets (10).
LEGEND
(15) Insert two safety pins (3) into storage brackets (2).
(16) Insert spring clips (4) into safety pins.
c. Outrigger Removal.
2 BRACKET
3 SAFETY PIN
4 SPRING CLIP
LEGEND
1 CASTER
WHEEL
2 HANDLE
(1) Lower caster wheel (1) by turning handle (2) in a clockwise direction.
(2) See TM 9-2330-251-14 and lower landing leg.
2-36
1 LIGHT BAR
