RECOVERY
000248
NOTE
When servicing A/C system, recover refrigerant first before removing any components.
1. Install blue low-side hose (Figure 1, Item 5) on suction (low) side (Figure 1, Item 1) of A/C compressor
(Figure 1, Item 3).
2. Install red high-side hose (Figure 1, Item 4) on discharge (high) side (Figure 1, Item 2) of A/C compressor
(Figure 1, Item 3).
3. Follow recovery equipment OEM instructions and recover R-134a refrigerant.

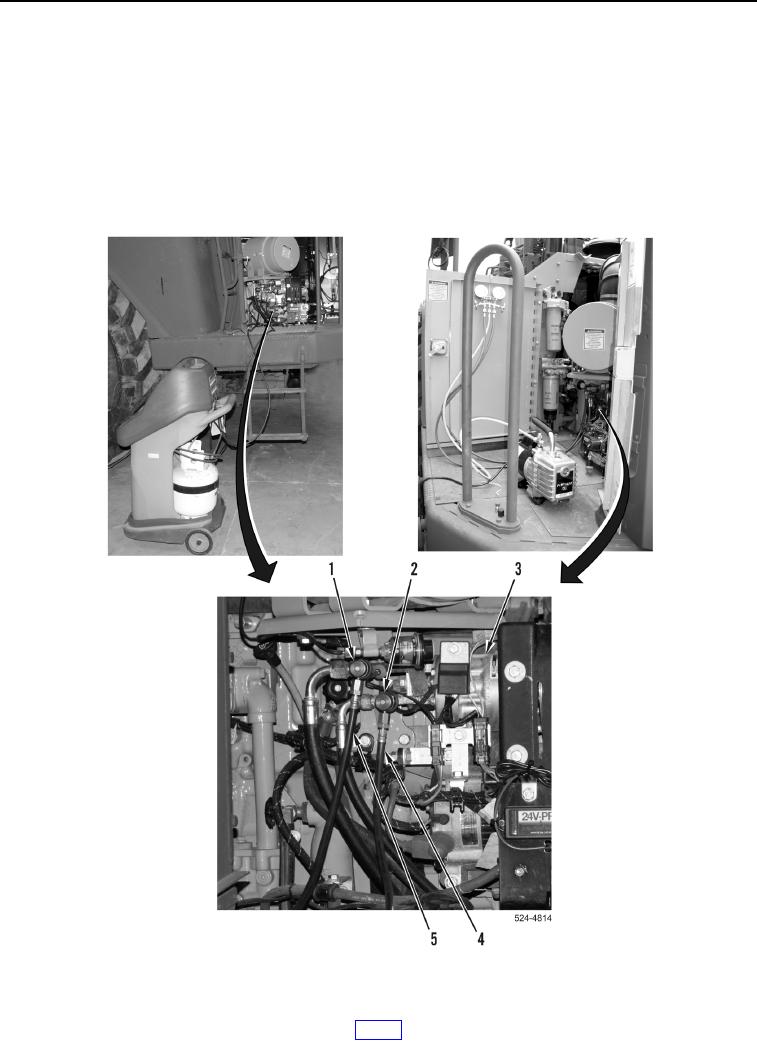

Figure 1. Recovery Hook-Up.
0248
END OF TASK
